The UpLinq Exam List shows active and existing, processed exams. UpLinq processes exams in the order they appear in the folder or received from the imaging modality.
Menu Bar and Options
The Menu Bar helps you manage exams at a more detailed level.
File
-
About: Opens the About UpLinq 2.7 window
-
Preferences: Changes UpLinq configurations, including encoding and studies Directories
Preferences Options- Source Directories: This determines the folder that UpLinq will check for processable files
- Set Encoded Directory: This determines the folder that Uplinq will store extracted data before uploading
- Proxy: If a proxy server is being utilized, the credentials can be entered here. If you are unsure if you are using a proxy server, please contact your local IT team.
-
Exit: Closes and exits UpLinq

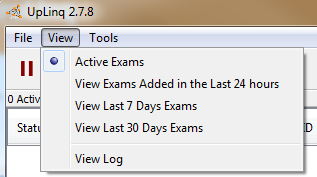

View
-
Active Exams: Shows only exams that are processing or in the processing queue
-
View Exams Added in the Last 24 Hours: Shows only exams added to UpLinq in the last 24 hours
-
View Last 7 Days Exams: Shows only exams added to UpLinq in the last 7 days
-
View Last 30 Days Exams: Shows only exams added to UpLinq in the last 7 days
-
View Log: Opens the Active Log View window, which shows a detailed log of UpLinq operations
Exam List Toolbar
The Exam List toolbar allows you to add exams to the Exam List. The toolbar also allows you to manually process exams and pause exam processing.
The Exam List toolbar shows the following options:
-
Process: Starts processing exams.
-
Pause: Pauses all exam processing.
-
Find: searches for exams in a local file directory.
-
New: manually create a new blank exam. (Click here if you receive the "Editor Data Not Set" error: Editor Data Form Not Set error)
-
Help: Opens UltraLinq's Support website in your browser.
Exam List Column Headings
The columns of the UpLinq Exam List give important information about individual exams.
Exams in UpLinq can be marked with the following statuses:
-
Status:
-
- Shows that the exam is currently processing, only the exam at the top of the list will process, exams process one at a time.
-
- Shows that the exam processed successfully.
-
- Shows that an error occurred during exam processing. Right click an exam with this status, and click Reprocess Exam. If an error remains, contact UltraLinq Technical Services.
-
Shows that the exam skipped processing. To process a skipped exam, right click an exam with this status, and click Enable Exam or Reprocess Exam.
-
-
Device Type shows the imaging modality type that captured the exam.
-
Patient Name shows the patient's name.
-
Patient ID shows the patient's MRN or other unique identifier.
-
Date of Birth shows the patient's birth date in YYYYMMDD format.
-
Exam Type shows the type of exam that was performed.
-
Date of Service shows the date the exam was performed in YYYMMDD format.
-
Number of Clips shows the number of images included in the exam (This counts includes still images, clips, and the sr file/s).
- Attached Files shows the number of files attached to the exam.
-
Encoding Progress shows the encoding progress as a percentage.
-
Upload Progress shows the uploading progress as a percentage.
-
Overall Progress shows the encoding and uploading progress together as a percentage.
Individual Exam Options
Note: Exams must be present in the UpLinq Exam List to access individual exam options.
Right click an exam in the UpLinq Exam List to show individual exam options.
UpLinq offers the following individual exam options:
-
Move Exam to Top moves the exam to the top of the Exam List.
-
Process Exam Next moves the exam to the second position in the Exam List.
-
Move Exam Up One moves the exam up one position in the Exam List.
-
Move Exam Down One moves the exam down one position in the Exam List.
-
Move Exam to Bottom moves the exam to the bottom of the Exam List.
-
Attach Files uploads a file as an attachment, which appears in the Attachments tab on the UltraLinq Exam page.
-
Remove Attachments removes attached files from the exam.
-
Edit Exam Worksheet opens the Worksheet Editor window. (Click here if you receive the "Editor Data Not Set" error: Editor Data Form Not Set error)
- Explore Exam opens the encoded folder containing the exam's files in Windows Explorer.
-
Skip Exam stops the exam from being processed or uploaded, exam will remain on the list.
-
Enable Exam allows a skipped exam to be processed.
-
Validate Exam validates the exam.
-
Reprocess Exam processes and uploads the exam again, overwriting the existing exam.
-
Delete Exam deletes the exam and all its files from UpLinq. Uploaded data will remain on UL.
Status Indicator
Find the UpLinq Status Indicator on the bottom of the application window. The UpLinq Connection status on the right is dependent on your Internet connection. The Drive status on the left is dependent on the space in your local drive.
-
On Line, in green, shows that UpLinq can successfully communicate with UltraLinq's server.
-
Unknown, in red, shows that UpLinq cannot communicate with UltraLinq's server. If the UpLinq status is Unknown, exams can be added and processed (encoded). However, they will not upload to UltraLinq until UpLinq can communicate with UltraLinq's server.
